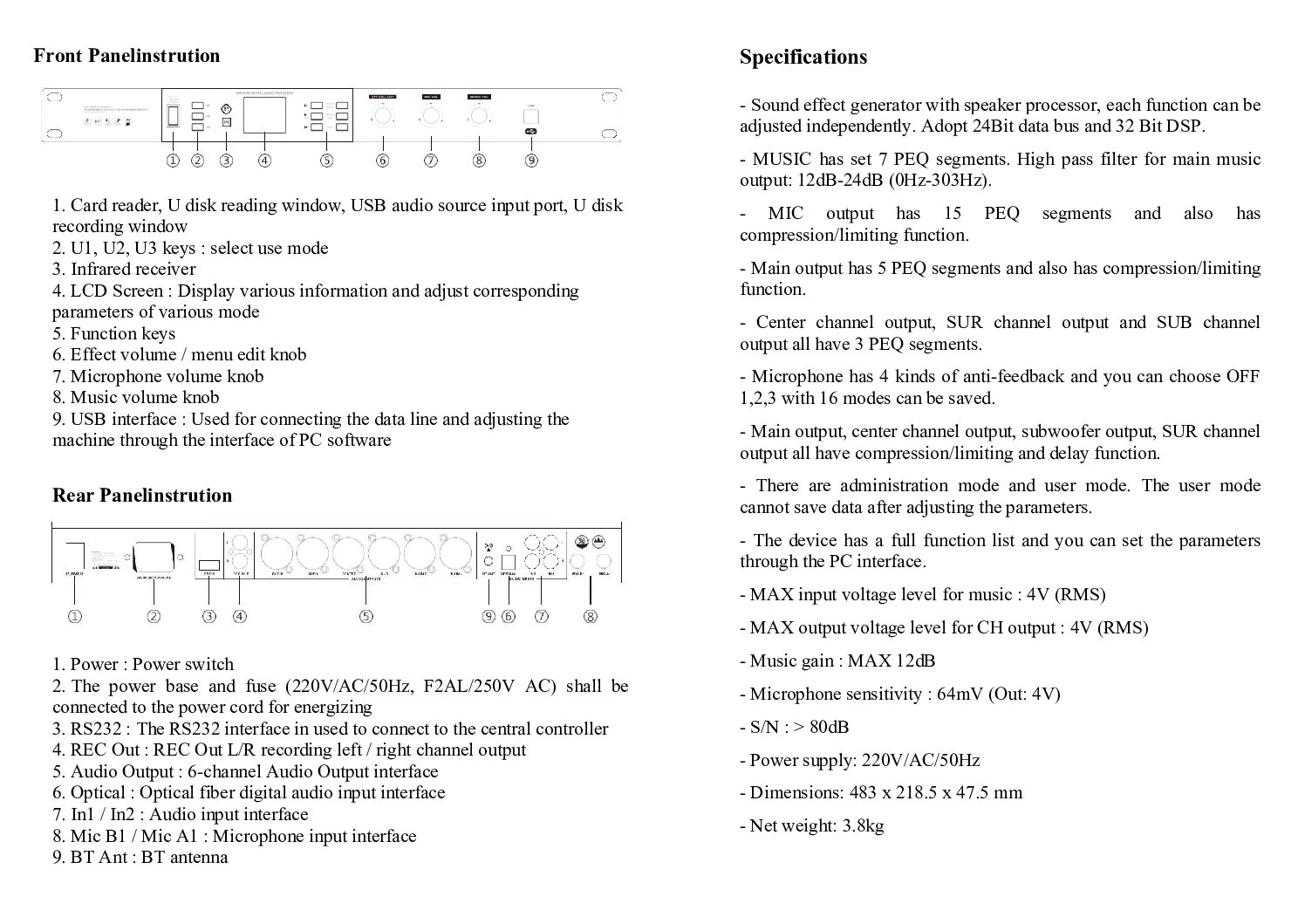

- SPECIFICATIONS
– Sound effect generator with speaker processor, each function can be
adjusted independently. Adopt 24Bit data bus and 32 Bit DSP.
– MUSIC has set 7 PEQ segments. High pass filter for main music
output: 12dB-24dB (0Hz-303Hz).
– MIC output has 15 PEQ segments and also has
compression/limiting function.
– Main output has 5 PEQ segments and also has compression/limiting
function.
– Center channel output, SUR channel output and SUB channel
output all have 3 PEQ segments.
– Microphone has 4 kinds of anti-feedback and you can choose OFF
1,2,3 with 16 modes can be saved.
– Main output, center channel output, subwoofer output, SUR channel
output all have compression/limiting and delay function.
– There are administration mode and user mode. The user mode
cannot save data after adjusting the parameters.
– The device has a full function list and you can set the parameters
through the PC interface.
– MAX input voltage level for music : 4V (RMS)
– MAX output voltage level for CH output : 4V (RMS)
– Music gain : MAX 12dB
– Microphone sensitivity : 64mV (Out: 4V)
– S/N : > 80dB
– Power supply: 220V/AC/50Hz
– Dimensions: 483 x 218.5 x 47.5 mm
– Net weight: 3.8kg
