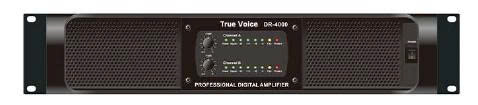

AMPLIFIER DR-4000

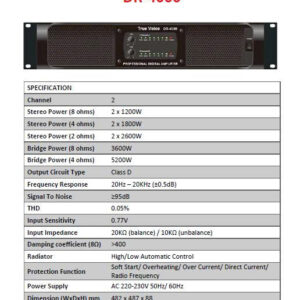

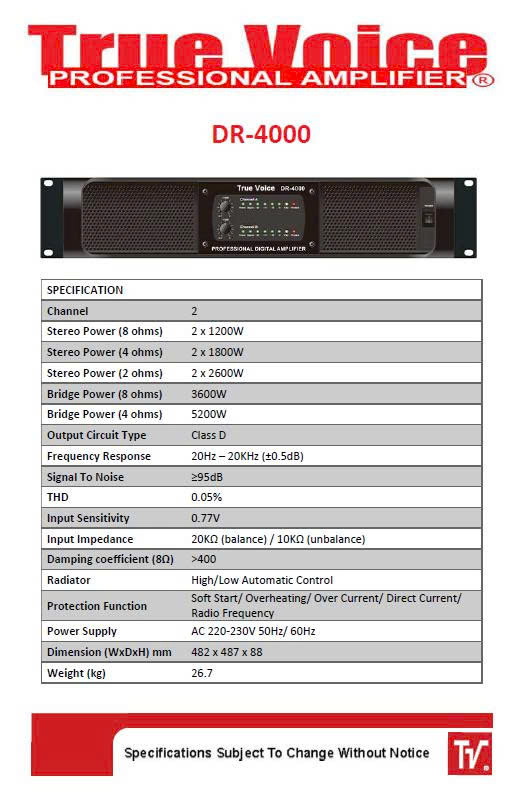

SPECIFICATION
Channel 2
Stereo Power (8 ohms) 2 x 1200W
Stereo Power (4 ohms) 2 x 1800W
Stereo Power (2 ohms) 2 x 2600W
Bridge Power (8 ohms) 3600W
Bridge Power (4 ohms) 5200W
Output Circuit Type Class D
Frequency Response 20Hz – 20KHz (±0.5dB)
Signal To Noise ≥95dB
THD 0.05%
Input Sensitivity 0.77V
Input Impedance 20KΩ (balance) / 10KΩ (unbalance)
Damping coefficient (8Ω) >400
Radiator High/Low Automatic Control
Protection Function
Soft Start/ Overheating/ Over Current/ Direct Current/
Radio Frequency
Power Supply AC 220-230V 50Hz/ 60Hz
Dimension (WxDxH) mm 482 x 487
