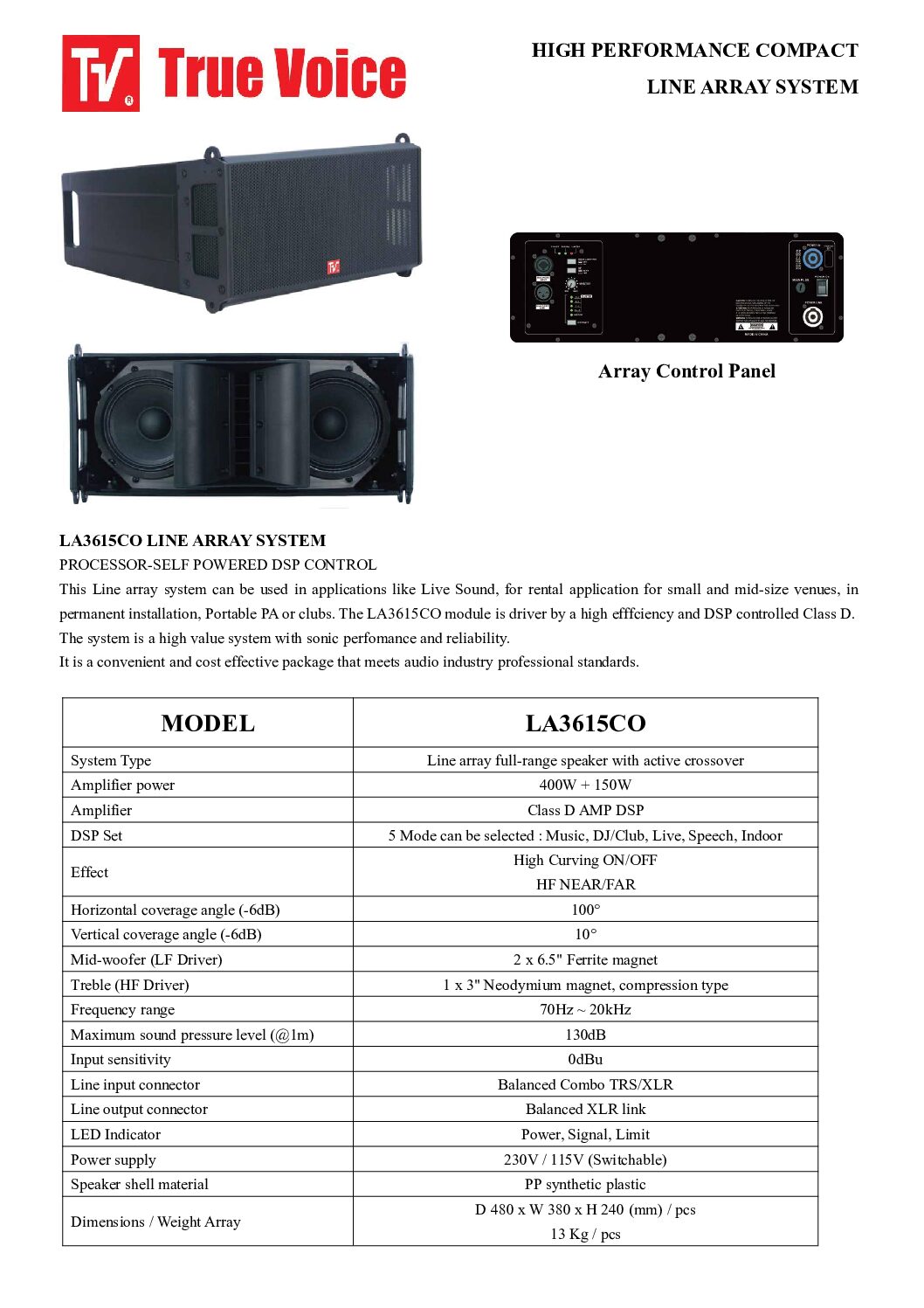

Technical specifications:
– Type: Line array full-range speaker with active dual-band crossover
– Frequency range: 70Hz ~ 20kHz
– Horizontal coverage angle (-6dB): 100°
– Vertical coverage angle (-6dB): 10°
– Mid-bass driver: 2 x 6.5″ ferrite magnet
– Treble driver: 1 x 3″ neodymium magnet, compression type
– Amplifier power: 400W + 150W
– Maximum sound pressure level (@1m): 130dB
– Input sensitivity: 0dBu
– Power supply: 230V / 115V
– Speaker shell material: PP synthetic plastic
