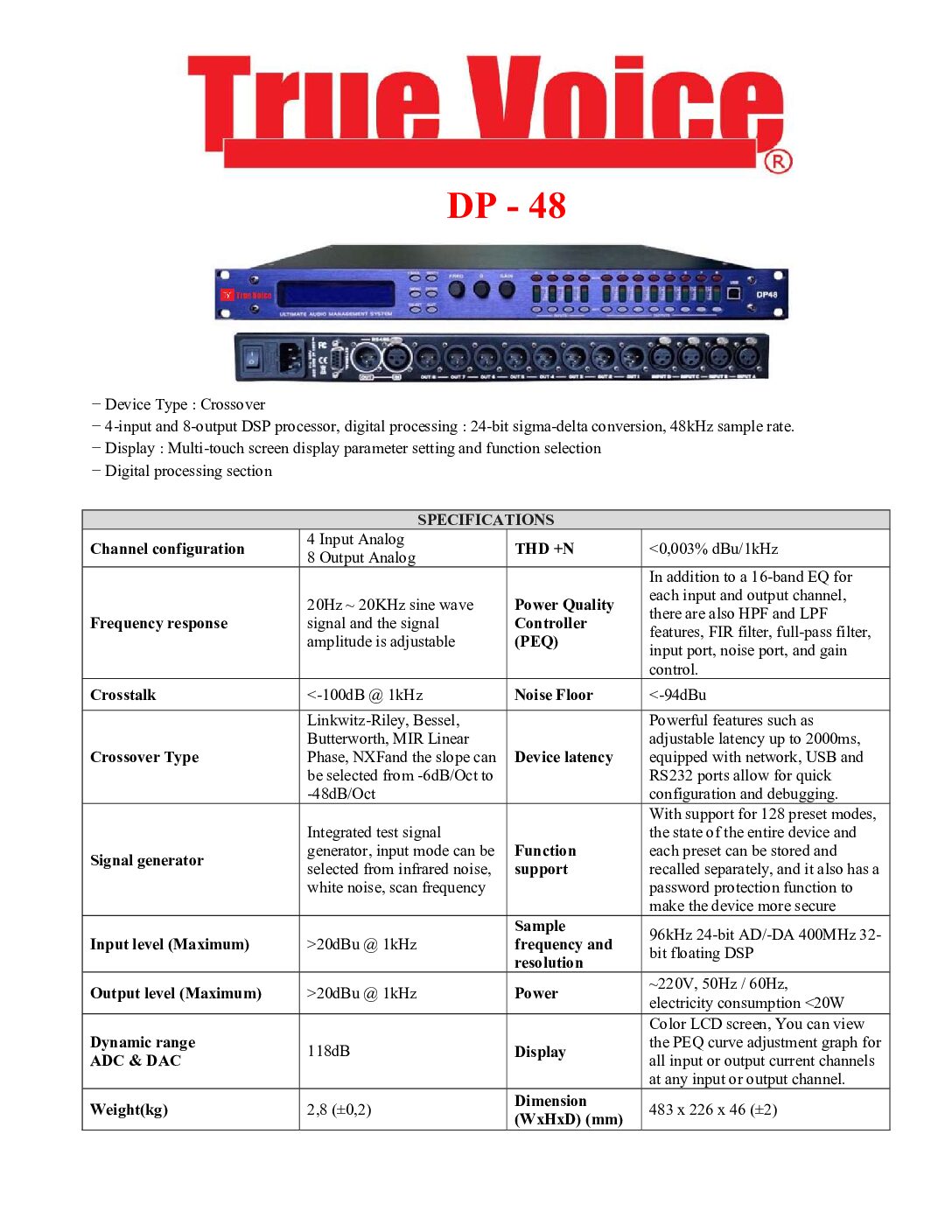

- Device Type: Crossover
| Channel configuration | 4 Input Analog 8 Output Analog |
THD +N | <0,003% dBu/1kHz |
| Frequency response | 20Hz ~ 20KHz sine wave signal and the signal amplitude is adjustable |
PowerQuality Controller (PEQ) |
In addition to a 16-band EQ for each input and output channel, there are also HPF and LPF features, FIR filter, full-pass filter, input port, noise port, and gain control. |
| Crosstalk | <-100dB @ 1kHz | Noise Floor | <-94dBu |
| Crossover Type | Linkwitz-Riley, Bessel, Butterworth, MIR Linear Phase, NXFand the slope can be selected from -6dB/Oct to -48dB/Oct |
Device latency | Powerful features such as adjustable latency up to 2000ms, equipped with network, USB and RS232 ports allow for quick configuration and debugging. |
| Signal generator | Integrated test signal generator, input mode can be selected from infrared noise, white noise, scan frequency |
Function support |
With support for 128 preset modes, the state of the entire device and each preset can be stored and recalled separately, and it also has a password protection function to make the device more secure |
| Input level (Maximum) | >20dBu @ 1kHz | Sample frequency and resolution |
96kHz 24-bit AD/-DA 400MHz 32- bit floating DSP |
| Output level (Maximum) | >20dBu @ 1kHz | Power | ~220V, 50Hz / 60Hz, electricity consumption <20W |
| Dynamic range ADC & DAC |
118dB | Display | Color LCD screen, You can view the PEQ curve adjustment graph for all input or output current channels at any input or output channel. |
| Weight(kg) | 2,8 (±0,2) | Dimension (WxHxD) (mm) |
483 x 226 x 46 (±2) |
