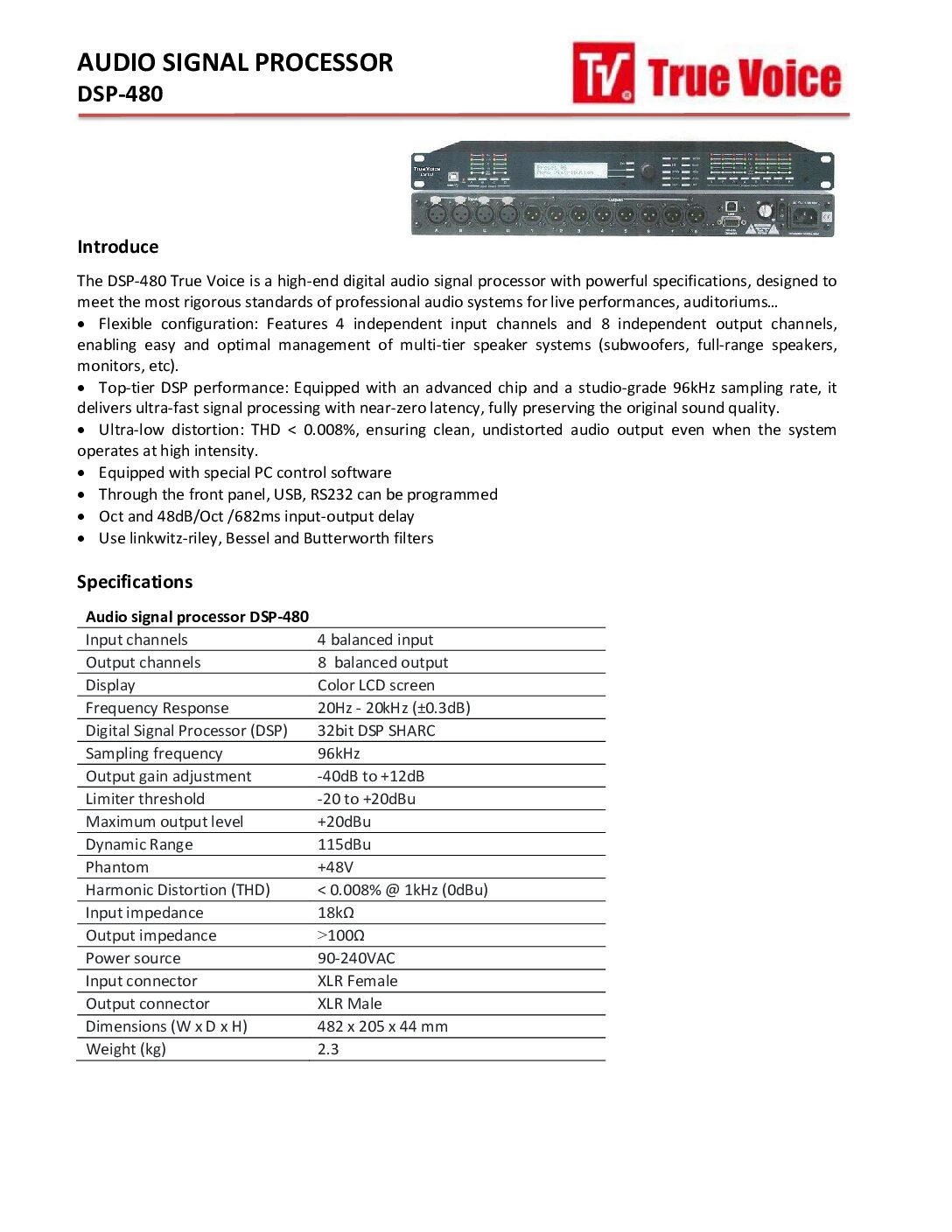

Specifications

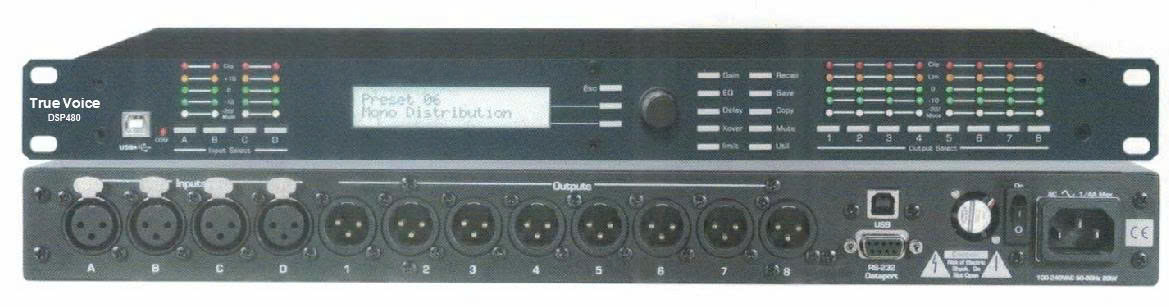

Audio signal processor DSP-480

Input channels 4 balanced input

Output channels 8 balanced output

Display Color LCD screen

Frequency Response  20Hz – 20kHz (±0.3dB) Digital Signal Processor (DSP) 32bit DSP SHARC Sampling frequency  96kHz

Output gain adjustment -40dB to +12dB Limiter threshold -20 to +20dBu

Maximum output level +20dBu

Dynamic Range 115dBu

Phantom +48V

Harmonic Distortion (THD)  < 0.008% @ 1kHz (0dBu) Input impedance 18kΩ

Output impedance >100Ω

Power source 90-240VAC

Input connector XLR Female

Output connector XLR Male Dimensions (W x D x H)  482 x 205 x 44 mm Weight (kg) 2.3
