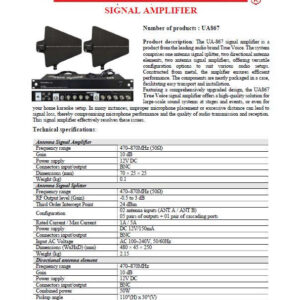

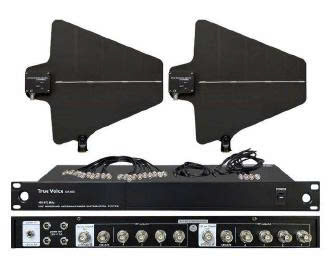

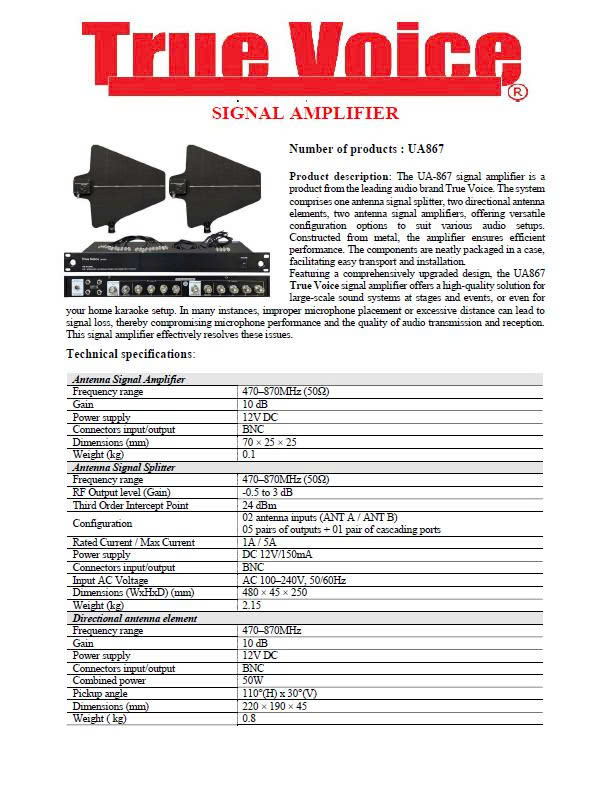

SIGNAL AMPLIFIER UA867

Antenna Signal Amplifier

Frequency range

470–870MHz (50Ω)

Gain

10 dB

Power supply

12V DC

Connectors input/output

BNC

Dimensions (mm)

70 × 25 × 25

Weight (kg)

0.1

Antenna Signal Splitter

Frequency range

470–870MHz (50Ω)

RF Output level (Gain)

-0.5 to 3 dB

Third Order Intercept Point

24 dBm

Configuration

02 antenna inputs (ANT A / ANT B)

05 pairs of outputs + 01 pair of cascading ports

Rated Current / Max Current

1A / 5A

Power supply

DC 12V/150mA

Connectors input/output

BNC

Input AC Voltage

AC 100–240V, 50/60Hz

Dimensions (WxHxD) (mm)

480 × 45 × 250

Weight (kg)

2.15

Directional antenna element

Frequency range

470–870MHz

Gain

10 dB

Power supply

12V DC

Connectors input/output

BNC

Combined power

50W

Pickup angle

110°(H) x 30°(V)

Dimensions (mm)

220 × 190 × 45

Weight ( kg)

0.8
