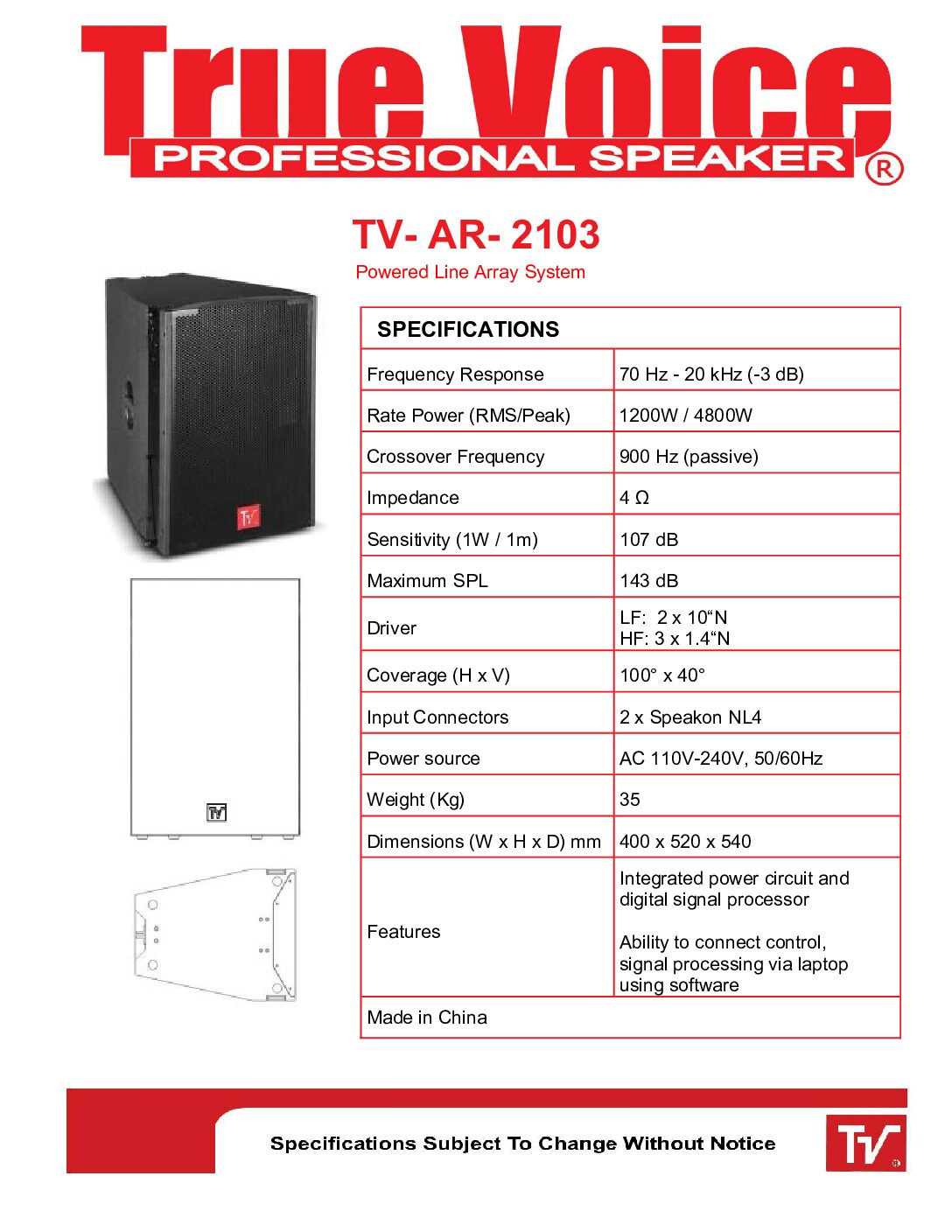

SPECIFICATIONS |
|
|
Frequency Response |
70 Hz – 20 kHz (-3 dB) |
|
Rate Power (RMS/Peak) |
1200W / 4800W |
|
Crossover Frequency |
900 Hz (passive) |
|
Impedance |
4 Ω |
|
Sensitivity (1W / 1m) |
107 dB |
|
Maximum SPL |
143 dB |
|
Driver |
LF: 2 x 10“N HF: 3 x 1.4“N |
|
Coverage (H x V) |
100° x 40° |
|
Input Connectors |
2 x Speakon NL4 |
|
Power source |
AC 110V-240V, 50/60Hz |
|
Weight (Kg) |
35 |
|
Dimensions (W x H x D) mm |
400 x 520 x 540 |
|
Features |
Integrated power circuit and digital signal processor Ability to connect control, signal processing via laptop using software |
|
Made in China |
|
