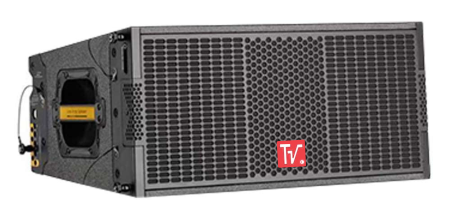

LINE ARRAY ACTIVE LA-208A TRUEVOICE

KEY FEATURES
·Ultra-compact, lightweight powered line array
·High-efficiency Class D amplifier with SMPS
·Easy system configuration thanks to ALLDSP ALLControl.
·High-end 32-bit DSP with LCD screen
·FIR processing for constant phase response
DESCRIPTION
·Can connect LA-208A arrays thanks to the quick installation system that allows choosing the angle
when stacking or hanging with 11 angles: 0°; 1°; 2°; 3°; 4°; 5°; 6°; 7°; 8°; 9°; 10°
·Support library for connection, simulate installation using ALLDSP ALLControl software to calculate
the connection angle of LINE ARRAY hanging speaker arrays (Support link to download updated
data into the software to calculated according to the manufacturer’s specifications). Calculate the
connection angle, speaker coverage and sound pressure level.
·Has a push-button setting feature to help the sound cover wider and louder consistently
·Has preset options for the number of connected speakers: 1U; 2U; 4U; 6U; 8U; 12U
·Integrated cooling fan for better cooling air circulation
·Integrated 32-bit DSP processor to handle X-over, EQ, delay and limiter functions, Powerful FIR
filter technology. Equipped with LCD screen, adjustment knob, ALLDSP ALLControl system
configuration
·Adjustment : screen brightness (BRIGHT: -10 to +10), sharpness (CONTRAST: -10 to +10),
setting lock (MENU LOCK: Off/On/pw888), logo on/off (Dimming: On/Off/Dark), reset to factory
settings, product information firmware in use
·Adjust Delay in the range of 0-9.9m each step of 0.1m (can switch between m and feet)
·Suspension system (Rigging)
SPECIFICATIONS
Power Continuous: 650 Watts
Power Peak: 1300 Watts
Frequency Range (-10 dB): 70 Hz – 20kHz
Maximum peak SPL at 1m: 133 dB
Input type: Balanced
Input Impedance: 20kΩ
Input sensitivity: 6.2 V (+18 dBu)
Horizontal coverage angle (-6 dB): 100˚
Vertical coverage angle: Splay Dependent
LF unit (Bass): 2 x 8 inch
HF unit (Treble): 1 x 3 inch
AC power required: 230V / 115V : 1.2A / 2.4A
Connectors:
+ INPUT : Female XLR ; LOOP THRU : Male XLR;
+ AC INPUT : power CON ; AC OUTPUT: powerCON
Enclosure Construction+ Polypropylene
Color: Black
Dimension (H x W x D): 280 x 635 x 525mm
Weight: 20.5 kg
